Magnum inverter reset

Our coach has an inverter, which is a device to convert battery power into 110 volt electricity. It also manages charging the battery from the campground pedestal power.

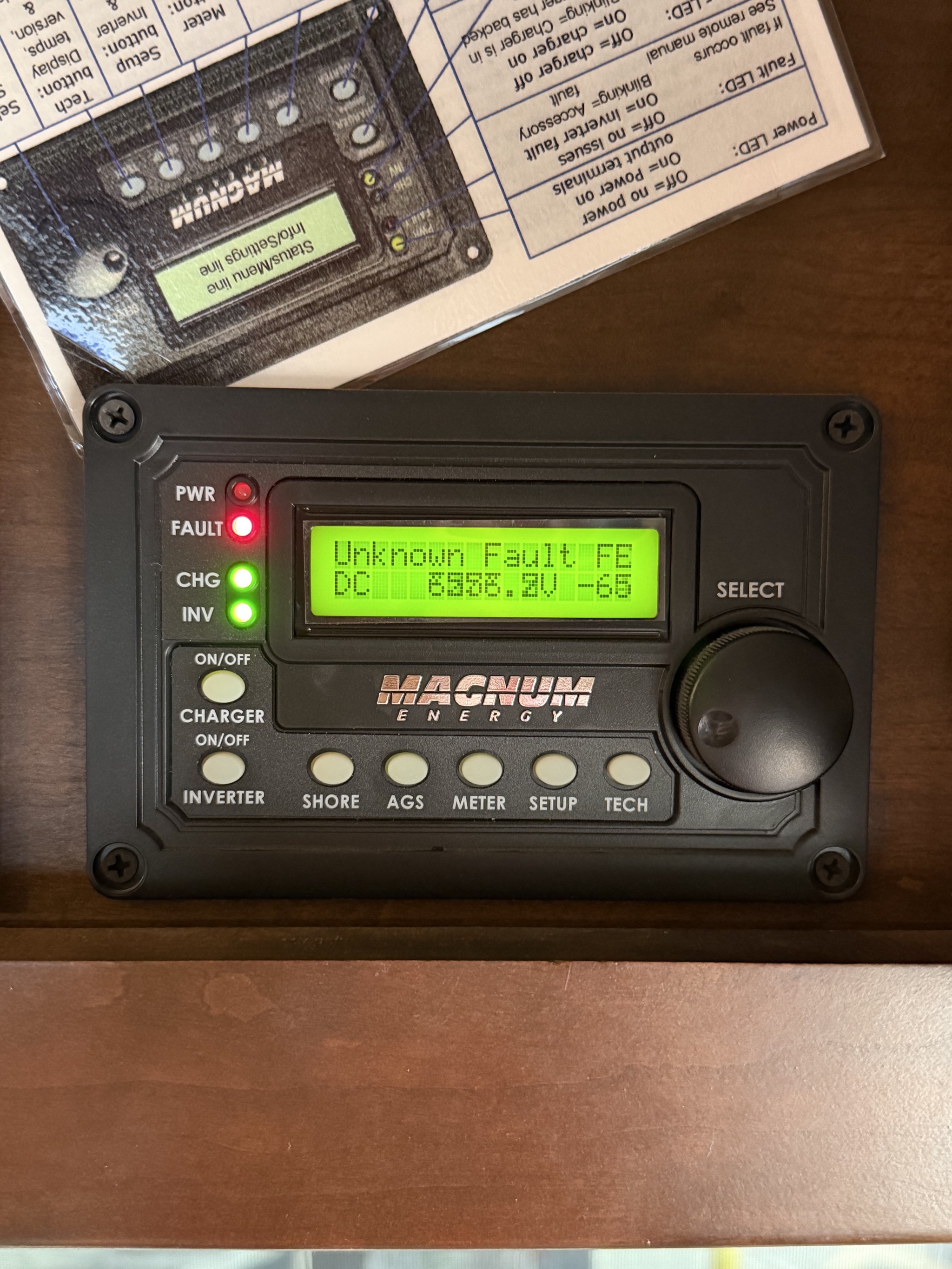

One day the Magnum inverter panel in our coach reported an “Unknown Fault”:

Unknown Fault on the Magnum inverter panel

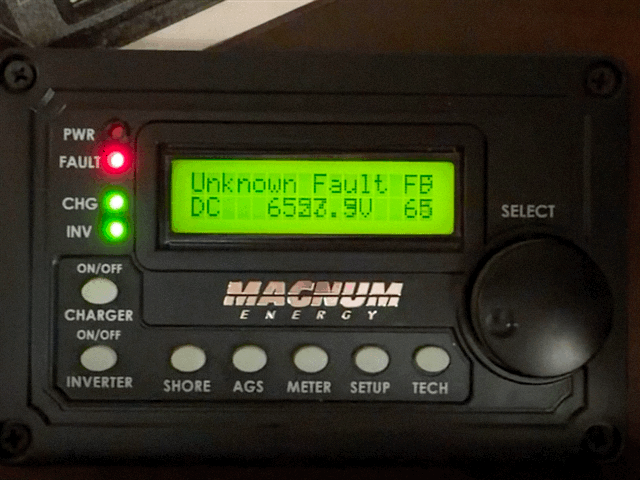

The fault and voltage display kept changing, with garbage values:

Unknown Fault on the Magnum inverter panel

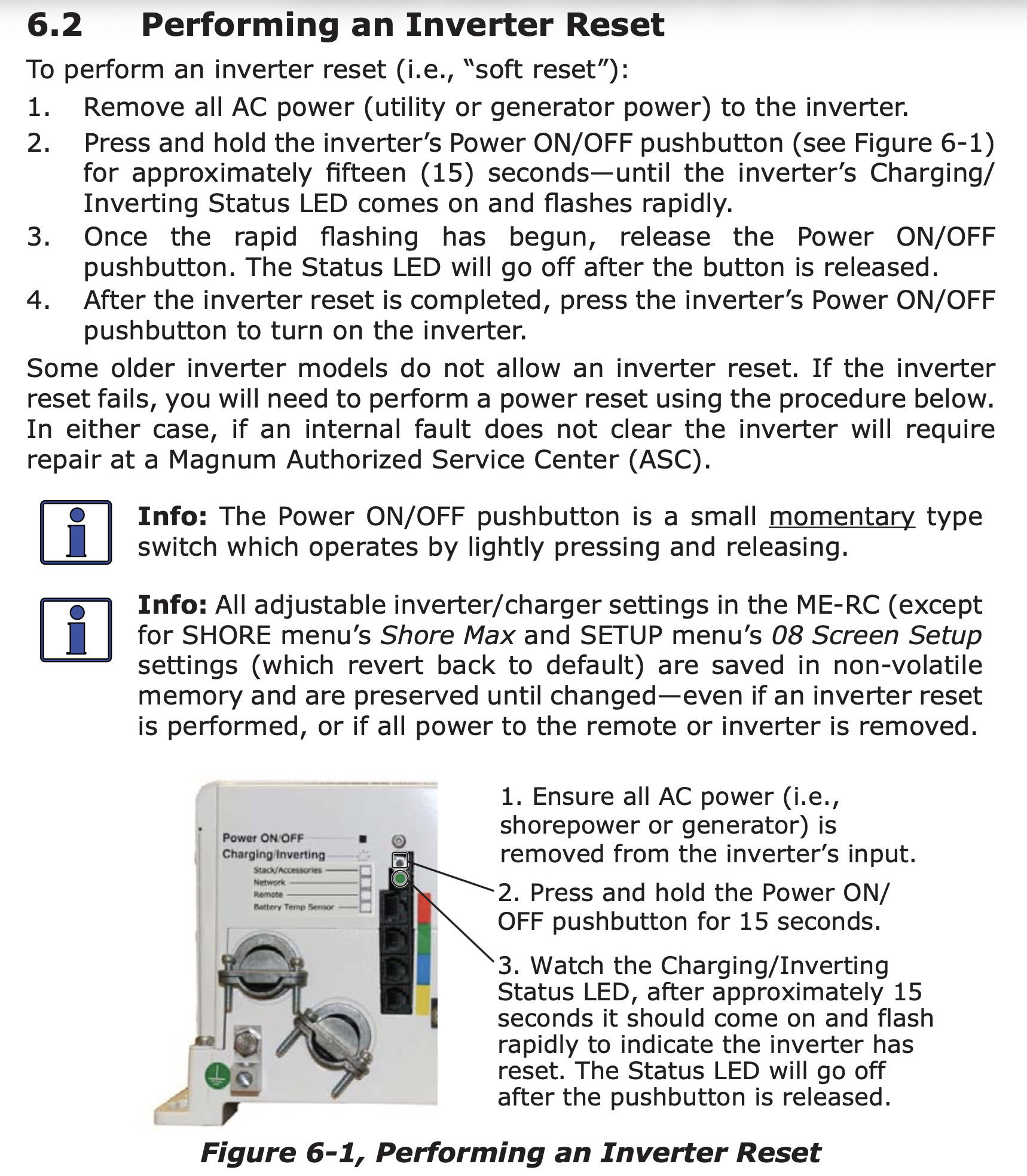

Time to apply an old computer maxim: “when in doubt, reboot.” I looked up the instructions on how to reboot the inverter, in its manual under “Performing an Inverter Reset”:

Performing an Inverter Reset

Here’s the Magnum inverter unit in the basement; in our 2017 Tiffin Allegro Bus 40SP motorhome it is mounted on the ceiling of the frontmost main storage compartment, on the driver side:

Magnum inverter unit

So I just needed to turn off the power at the pedestal, then hold down the button (below the green light in that photo) for 15 seconds. That did the trick.
